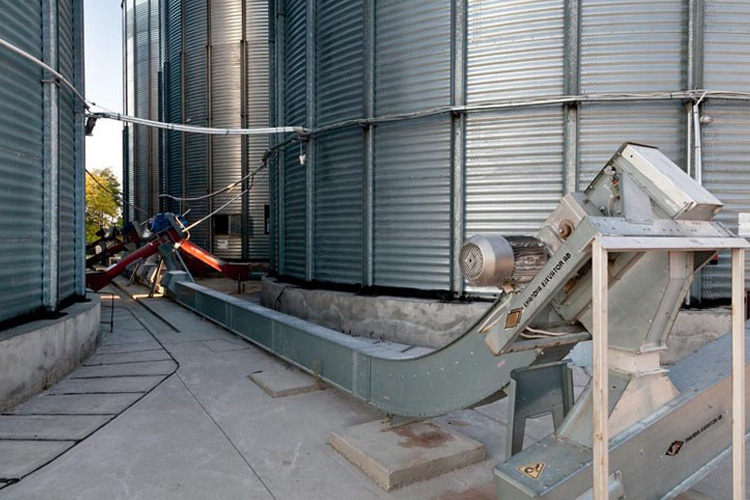

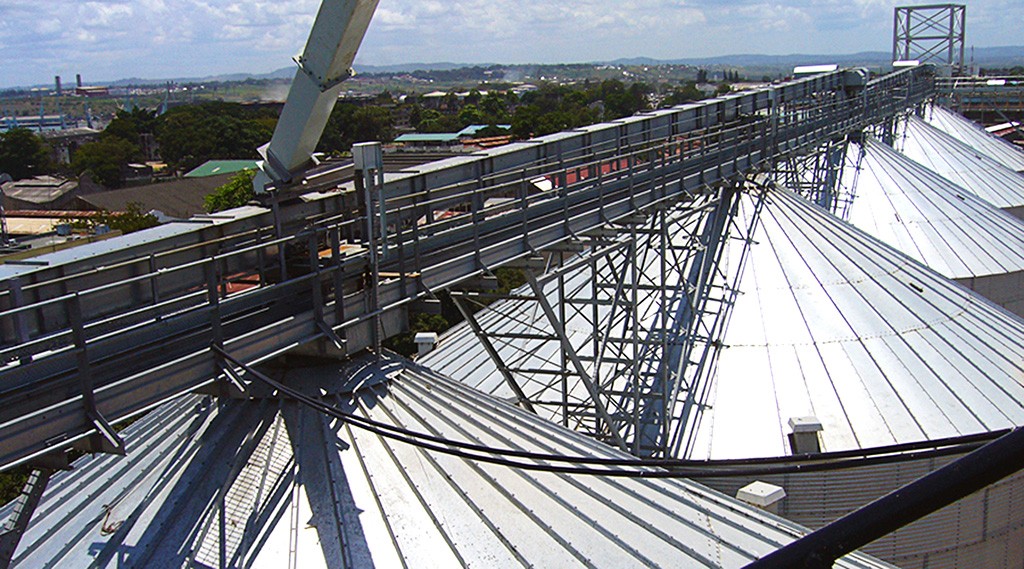

Horizontal and Inclined Chain conveyors

Horizontal and Inclined Chain Conveyors are used to quickly move grain in either loading or unloading grain silos. They can be operated in revers or constructed as a flow / return conveyor.

  • Direct-mounted gearbox motor with support frame
  • Pop up overloading ap/inspection hatch with safety switch › Outlet hopper for the drive
  • Inlet hopper for tail end
  • Chain tensioner with variable end face for extra cleanliness › Bottom clean out hatch in tail end
  • Journalled chain return rollers of steel
  • Permanently lubricated bearings
  • Chain and flight of steel with clean-out flight of
  • PE (polyethylene)
  • Plastic wearing surfaces on top of the bottom plate
  • Tonnage per hour from 15 to over 600 tonnes per hour
